Linear Actuator

LD3

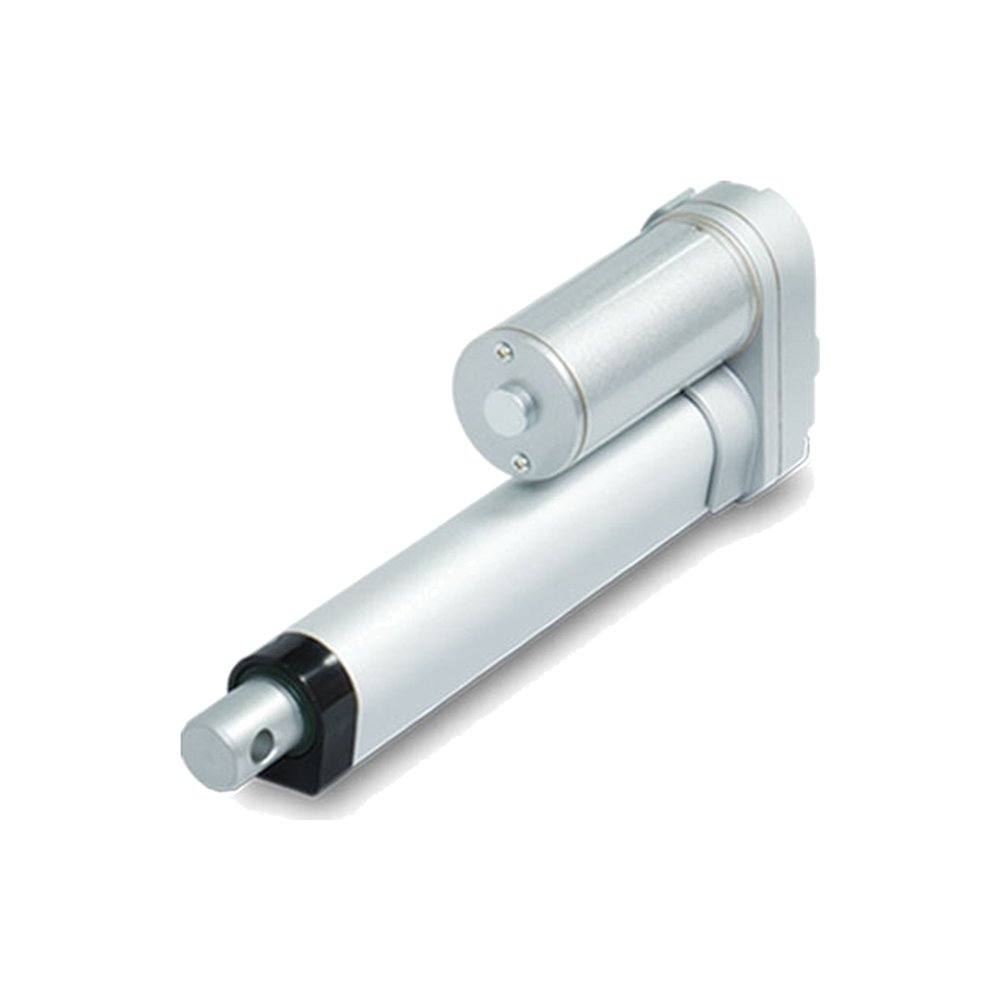

Name: MOTECK LD3
Brand: MOTECK
SKU: LD3

Its compact design makes it suitable for applications requiring tight installation space, such as window and door openers and adjustable seat recline mechanisms.

Max. push force1,000 N

Max. speed (no load)43.9 mm/s

Stroke range50 – 300 mm

Voltage12V DC / 24V DC

Protection classIP54

Duty cycle25%

Request a quote

Technical data

Technical specifications

Supply voltage: 12V DC / 24V DC
Max. load: 1,000 N (Push / Pull)
Max. static load: 2,500 N (Push / Pull)
Max. speed (no load): 43.9 mm/s (typical value)
Speed at full load: 5.5 mm/s (typical value @1,000 N load)
Stroke: 50 / 100 / 150 / 200 / 250 / 300 mm
Noise level: Please refer to Performance Data
IP protection class: IP54 (Standard) / IP65 (static; non-operating)
Factory-preset limit switches
Positioning:
Optional digital position feedback via dual Hall sensors
Optional analog position feedback via potentiometer (POT)
Duty cycle: 25%, max. 1 min. continuous operation / 4 min.
Operating ambient temperature: -25°C–+65°C
Storage ambient temperature: -25°C–+65°C
Certifications: CE Marking, Electromagnetic Compatibility Directive 2014/30/EU (for LD3 only)
Quiet version (LD3Q, noise level ≤55 dB)
