Linear Actuator

FD40

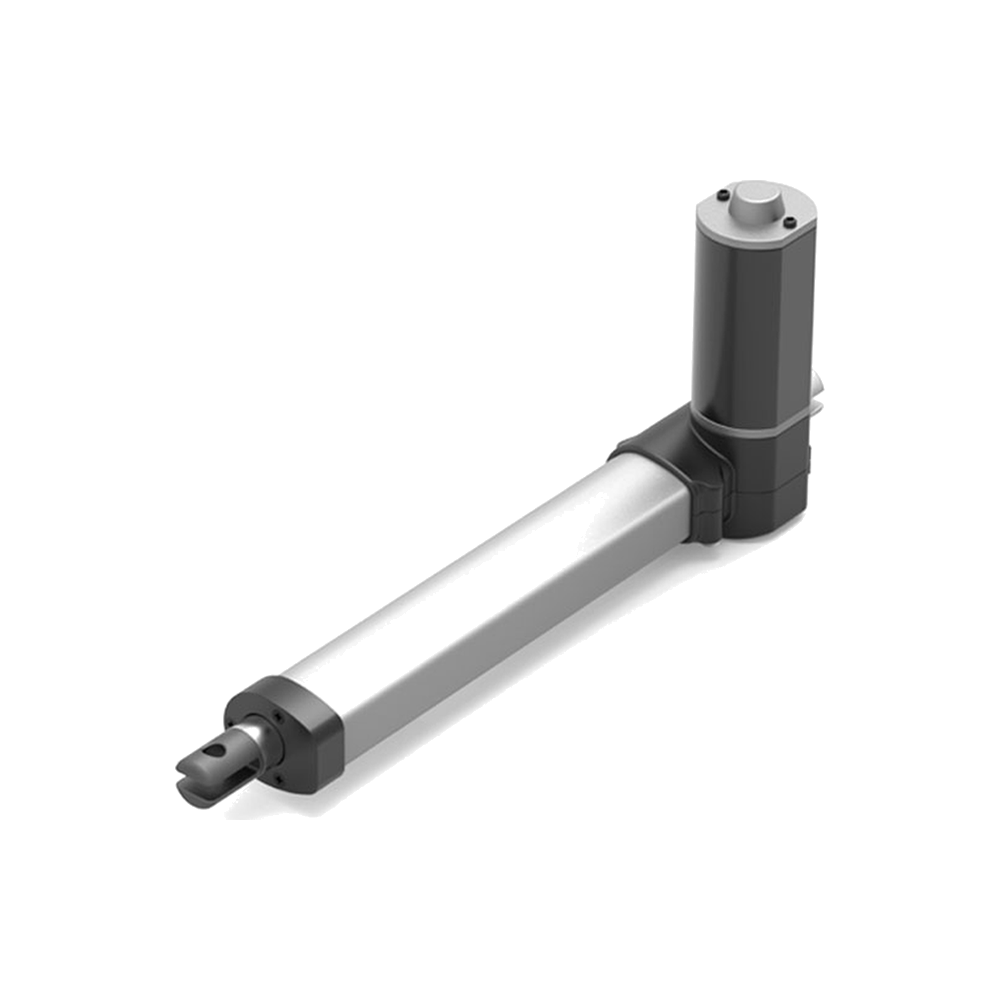

Name: MOTECK FD40
Brand: MOTECK
SKU: FD40

A compact actuator suitable for tight installation spaces, delivering up to 4,000 N of push force. The motor can be positioned on the right or left side as needed, and various performance options are available.

Max. push force4,000 N

Max. speed (no load)30 mm/s

Stroke range50 – 400 mm

Voltage24V DC

Noise≤ 50 dB

Protection classIP42

Duty cycle10%

Request a quote

Technical data

Technical specifications

Supply voltage: 24V DC
Max. load: 4,000 N (Push) / 2,000 N (Pull)
Typical speed (no load): 30.3 mm/s
Typical speed (at full load): 4 mm/s (4,000 N load)
Stroke: 50 – 400 mm
Noise level: ≤50 dB
IP protection class: IP42 (static, non-operating)
Factory-preset limit switches
Duty cycle: 10%, max. 2 min. continuous operation / 20 min.
Operating ambient temperature: -20°C ~ +65°C
Storage ambient temperature: -25°C ~ +65°C
Certifications: CE Marking, EMC Directive 2014/30/EU
Mechanical brake

FD40

Technical specifications
