Control Box

CI74

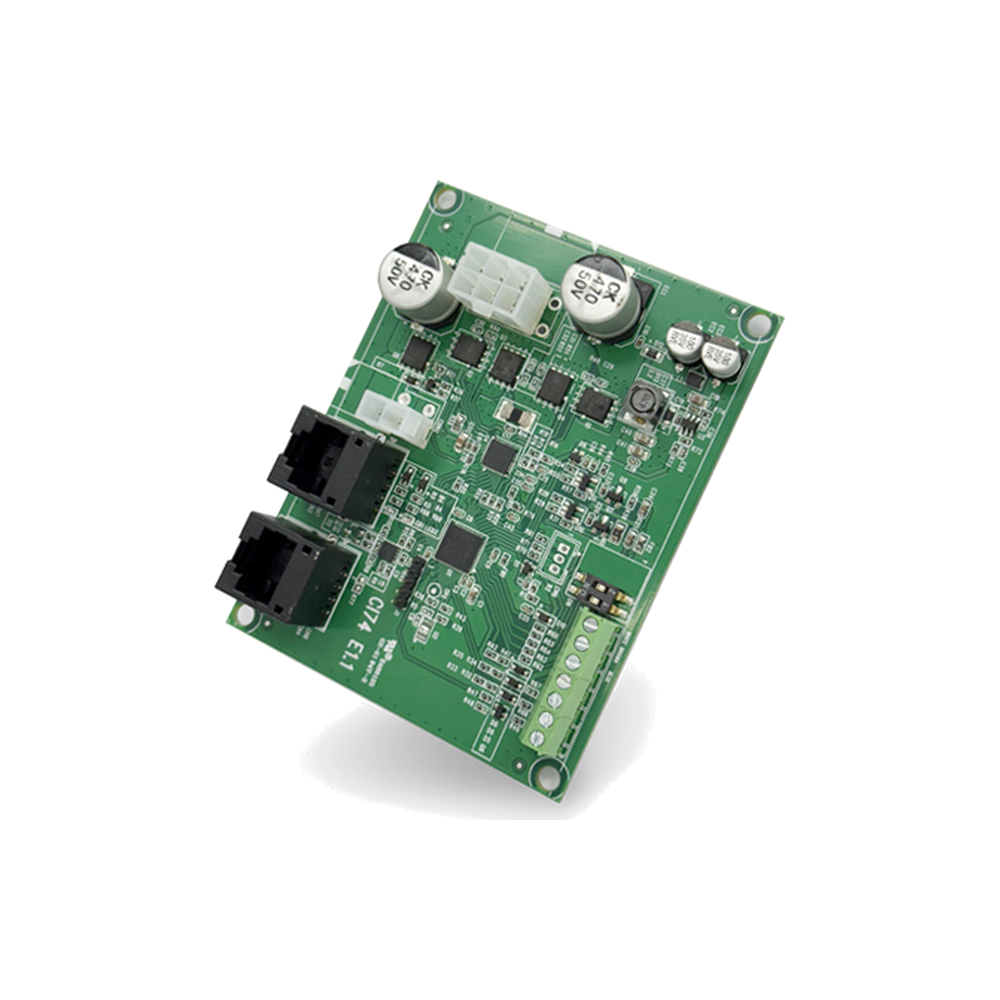

Name: MOTECK CI74
Brand: MOTECK
SKU: CI74

Controller for industrial applications. It allows the customer's PLC/PC master controller to control the actuator with commands compliant with the Modbus RTU protocol over an RS-485 network. Each CI74 drives a single actuator; multiple CI74 units can be connected with CAT-5 or higher cables to build a multi-actuator system.

Voltage29V DC

Motors controlled1

Duty cycle25%

Request a quote

Technical data

Technical specifications

Supply voltage: 12∼29V DC (same as actuator power output)
Actuator power output: Same as input voltage
Max. current: 16 A
Max. number of actuators: 1 channel
Control platform: Modbus RTU communication protocol
Function version: CI74-D / CI74-P / CI74-B — three function options are available for this model. (For CI74-P, the actuator's motion control can only be controlled through I/O terminals and cannot be controlled through Modbus messages; CI74-B is the opposite and can only be controlled through Modbus messages.)
Supports single Hall or dual Hall effect sensors (NPN type only) positioning feedback
Supports actuators with or without stroke limit switches
Provides an Endege CI74 PC tool for actuator parameter setting and control
1,500 mm long USB-to-RJ45 PC setting cable (users must have at least one; please purchase separately)
LED operation indicator
Duty cycle: 25%, max. 2 min. continuous operation / 8 min.
Operating ambient temperature: -20°C∼+55°C
Storage ambient temperature: -40°C∼+70°C
Comes with 4 plastic PCB spacers
Comes with a 100 mm power cord
Optional:
\- DIN rail holder (for mounting on DIN NS 32 or NS 35/7.5 rail)
