Control Box

CI73

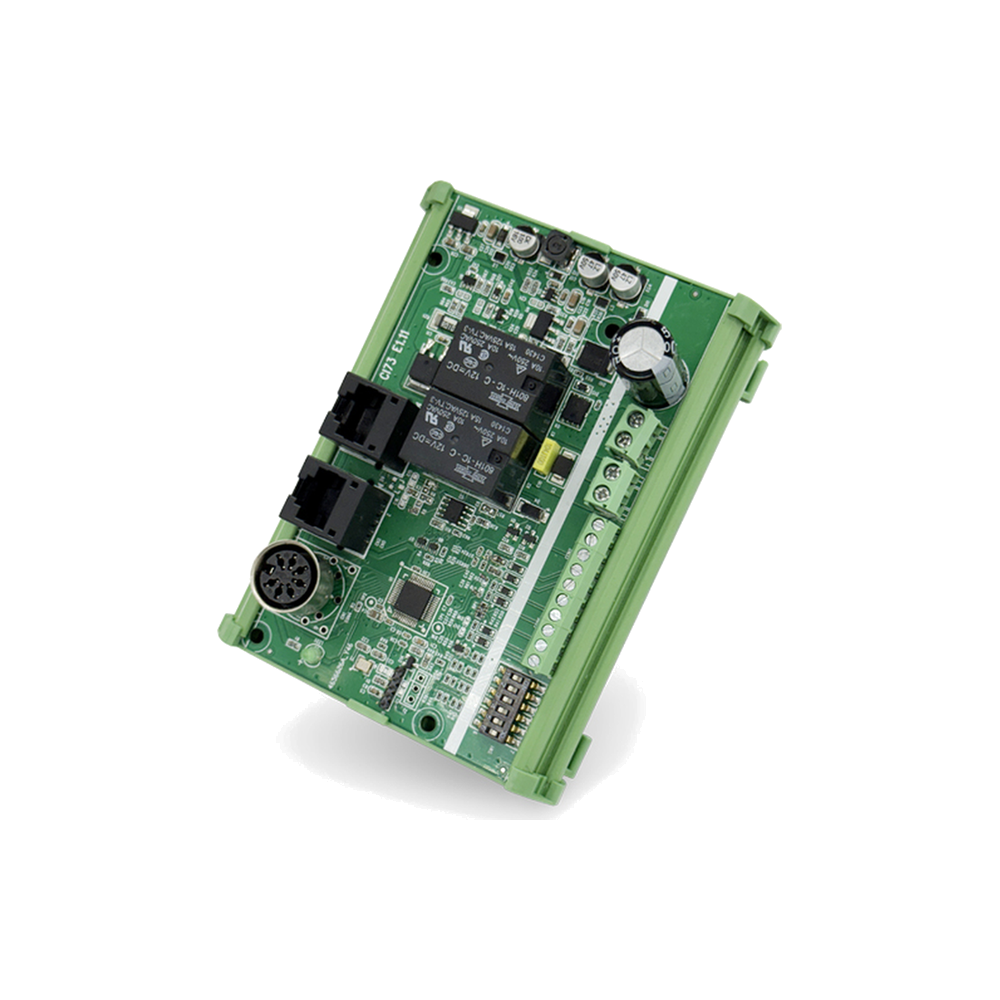

Name: MOTECK CI73
Brand: MOTECK
SKU: CI73

Industrial control card designed for synchronous movement of actuators. Each CI73 manages one actuator; multi-actuator synchronization is achieved over a closed network via communication cables between cards. There is no fixed master/slave distinction — the master card is determined by the user.

Voltage12V DC / 24V DC

Motors controlled1

Duty cycle15%

Request a quote

Technical data

Technical specifications

Supply voltage: 12V DC / 24V DC (power cord not included, prepared by customer)
Actuator power output: 12V DC, max. 16 A / 24V DC, max. 10 A
Max. number of actuators: 1 channel; up to 8 sets of CI73 can be connected to achieve synchronous control of 8 actuators.
Supports POT, single Hall, or dual Hall effect sensor feedback.
Supports actuators with or without stroke limit switches
Control input: 5-position terminal, 2-meter control cable included (in delivery)
Supports the position memory function through hand control (must be ordered separately)
LED operation indicator (green)
Parameter setting: Through hardware DIP switch
Duty cycle: 15%, max. 2 min. continuous operation
Operating ambient temperature: -20°C ~ +55°C
Accessories: A 0.25 W 120 ohm terminal resistor is included with the product, for use at both ends of the synchronous communication wiring.
Comes with 4 plastic PCB spacers
Options: Mounting kit (suitable for installation on customer-prepared NS 32 or NS 35/7.5 DIN rails)
Certifications: CE Marking, EMC Directive 2014/30/EU
