CF32

Name: MOTECK CF32
Brand: MOTECK
SKU: CF32

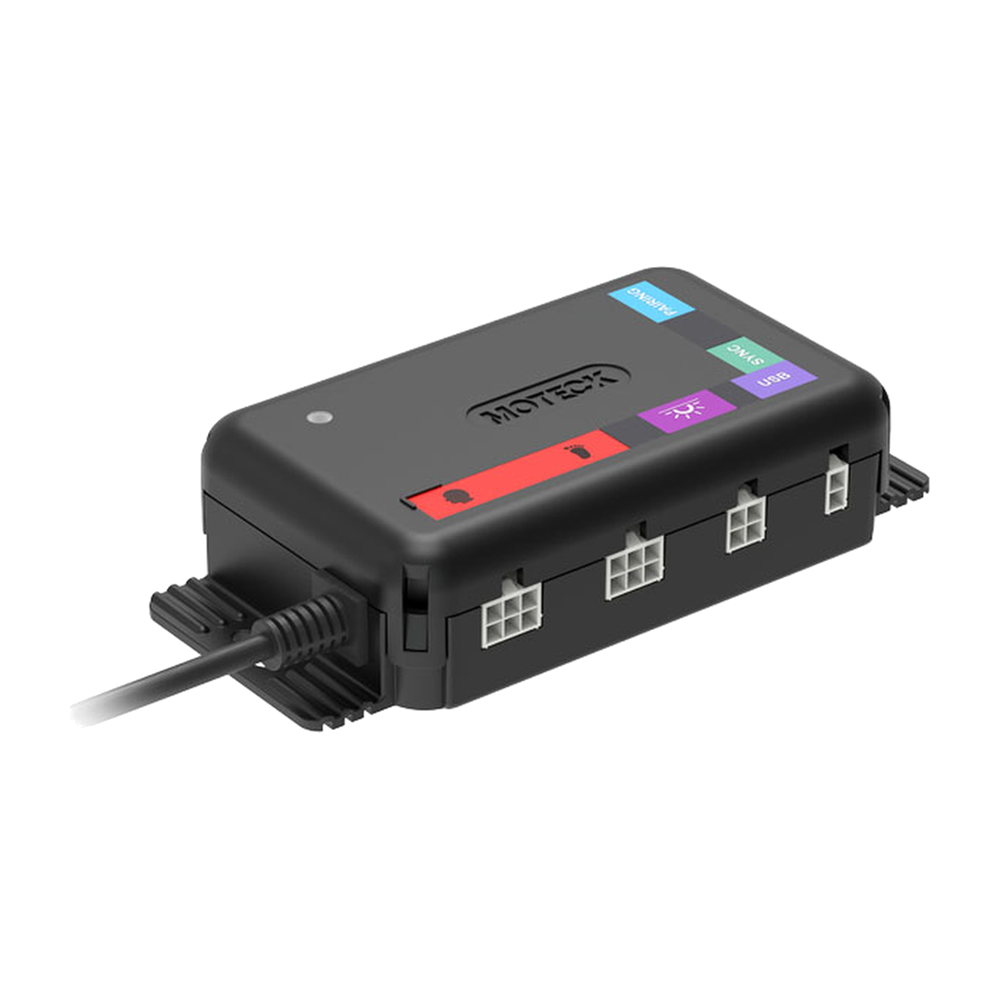

Control box that drives two actuators, remotely operated via a built-in Bluetooth module. Supports an external USB charging dock and under-bed LED lighting. Two control boxes can be connected with a sync cable and managed with a single remote; mainly used in furniture beds.

Voltage29V DC

Motors controlled2

Duty cycle10%

Request a quote

Technical data

Technical specifications

Supply voltage: 29V DC (SMPS, not included)
Output: 29V DC (actuator socket)
Built-in Bluetooth module (remote controlled with TX32 wireless control, purchase separately)
Max. number of paired remotes: 4 (for pairing, please refer to the TX32 data sheet)
Actuator position memory function
Max. number of actuators: 2 (simultaneous movement)
Rated output current: 3.5 A (per channel)
Duty cycle: 10%, max. 2 min. continuous operation / 20 min.
Operating ambient temperature: +5℃~+40℃
With pairing button
With buzzer reminder
Supports external under-bed light (output 24V DC, purchase separately)
Supports external USB dock (output 24V DC, purchase separately)
Two CF32 units can be connected to control them simultaneously (2,000 mm sync cable should be purchased separately)
A customized app can be provided to control it via smartphone. Please contact ENDEGE sales if needed.
Color: Black
Power cable length: 2,400 mm straight
