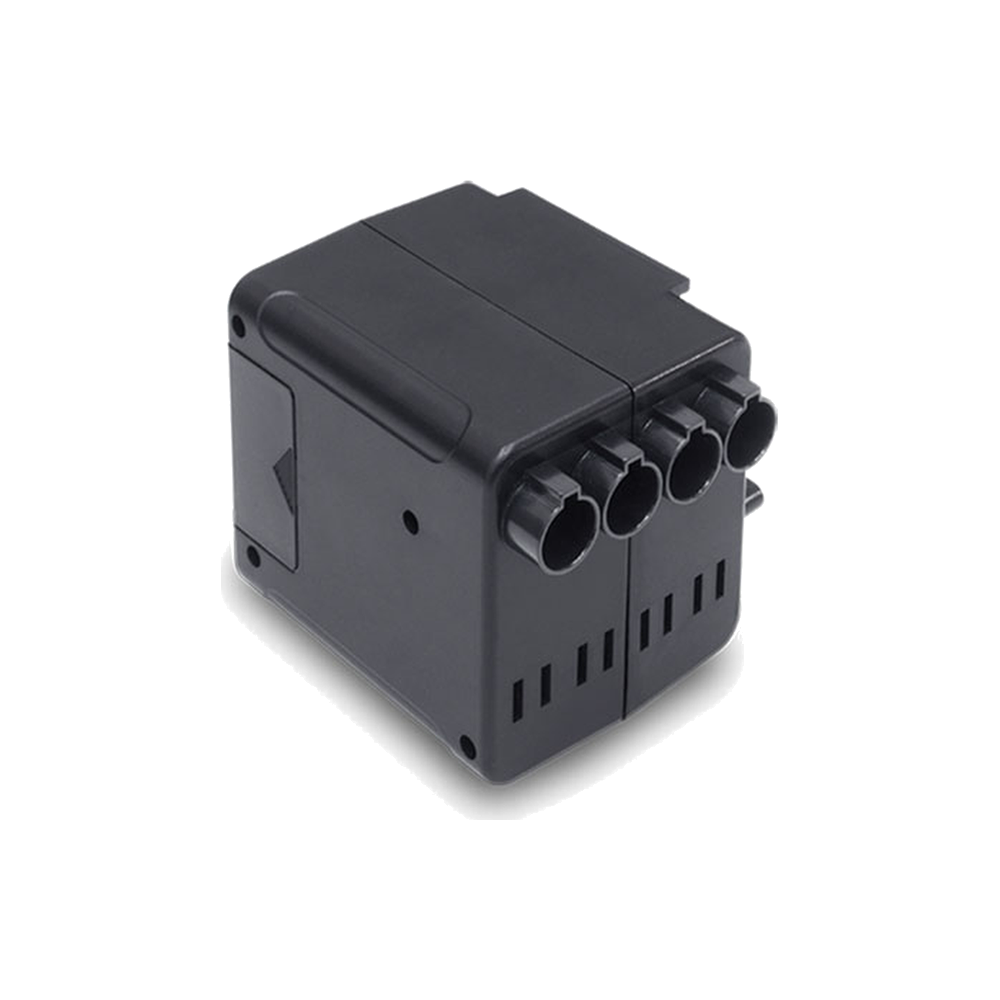

MOTECK CBT2 Control Box

Control Box

CBT2

Control box with a detachable power cord design that flexibly adapts to different cable lengths and plug types.

Voltage24V DC / 29V DC

Motors controlled3

Duty cycle10%

Request a quote

Technical data

Technical specifications

Input: 100 / 120 / 230V AC (EI transformer), 100 – 240V AC, 50/60 Hz (SMPS)
Output voltage: 24V DC (EI transformer), 29V DC (SMPS)
Rated output current: 3.0 A (per channel)
Max. number of actuators: 3 channels
Max. number of hand controls: 1 channel
Duty cycle: 10%, max. 2 min. continuous operation / 20 min.
Overcurrent protection
Emergency lowering on power failure; actuator retraction with 9V battery (not included)
Color: Black, Gray RAL 7001
Protection class against electric shock: Class I, Class II
2-pin / 3-pin detachable AC power cord: 2,000 mm
Mounting: Attached to the FD60 actuator or assembly with a mounting plate to fix it to the wall
Certifications: CE Marking, EMC Directive 2014/30/EU (for CBT2-IS2 only). EN 62233, FCC, RoHS
