Control Box

CB4M

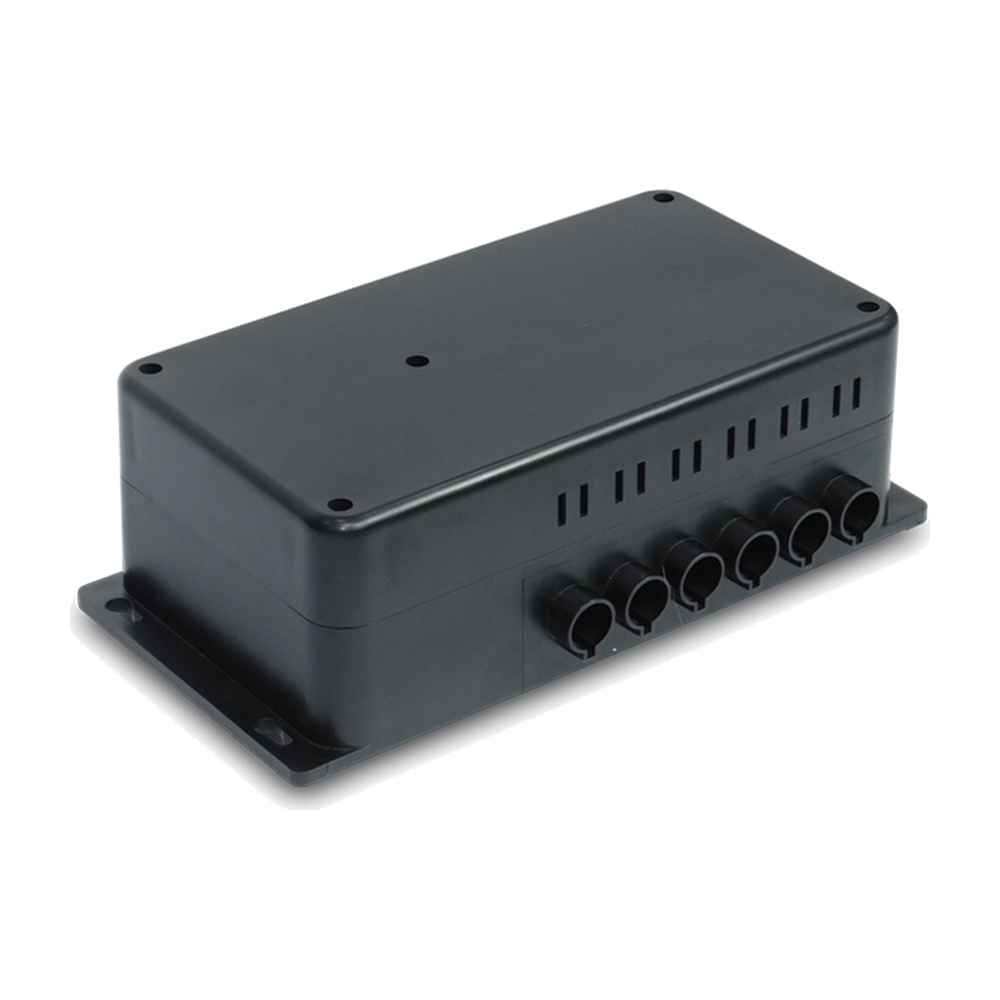

Name: MOTECK CB4M
Brand: MOTECK
SKU: CB4M

Control box designed for home beds, care beds, and other furniture applications. Drives up to 4 actuators and can operate with optional rechargeable batteries. Offers three function options: CB4M, CB4M-S and CB4M-B.

Voltage24V DC

Motors controlled4

Duty cycle10%

Request a quote

Technical data

Technical specifications

Input: 110V AC 60 Hz / 230V AC 50 Hz (EI transformer)
Output voltage: 24V DC
Rated output current: 3.0 A (per channel)
Number of actuators: 2–4 channels
Number of hand controls: 1–2 channels
Duty cycle: 10%, max. 2 min. continuous operation / 20 min.
Overcurrent protection
Protection class against electric shock: Class I, Class II
Color: Black
Power cable length: 3,000 mm
Options
CB4M (standard type): No positioning function. Includes a 1.3Ah lead-acid battery with built-in charging function.
CB4M-S (synchronous type – advanced): Synchronous movement for all 4 actuators. Supports position display and memory function through hand control.
CB4M-B (synchronous type – basic): Synchronous movement for 3 or 4 actuators. Does not support position display or memory function.

CB4M

Technical specifications
