Control Box

CB2P

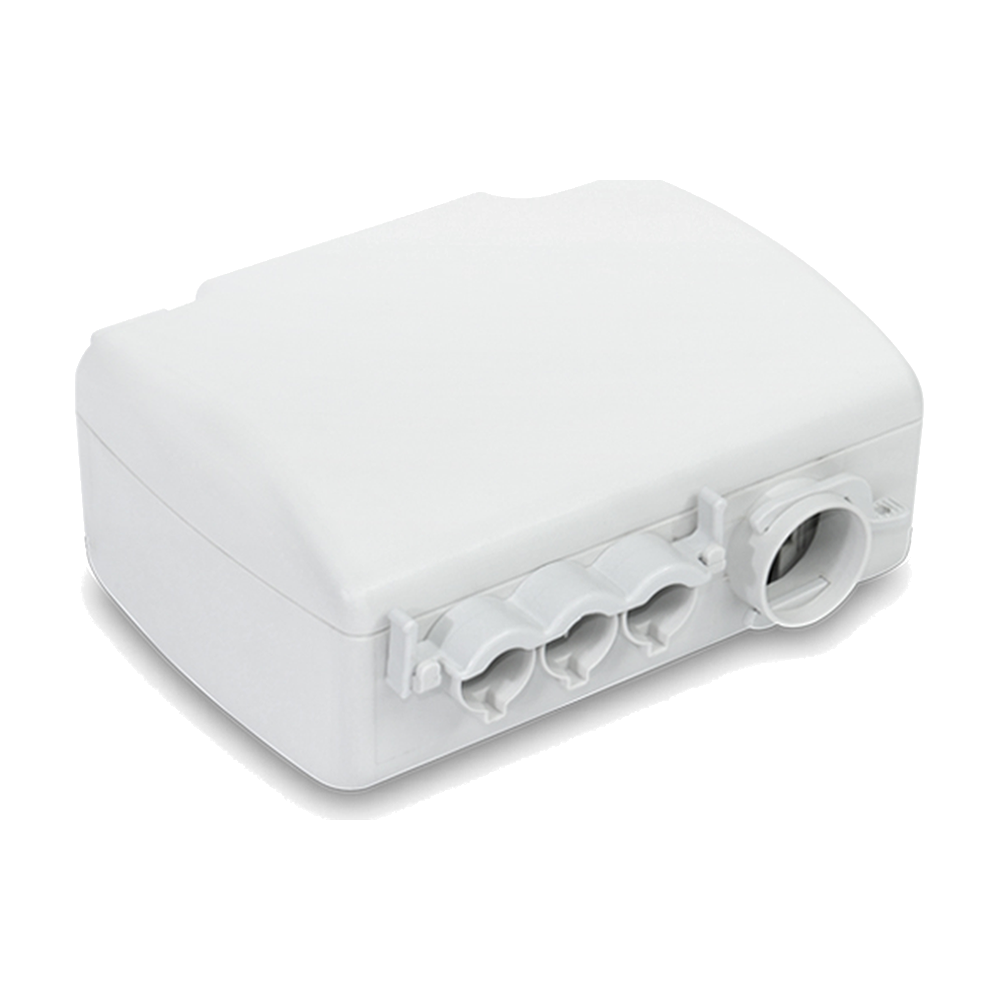

Name: MOTECK CB2P
Brand: MOTECK
SKU: CB2P

Specifically designed for medical and home-care applications. Its compact design allows it to be mounted as an integrated set with MD60, MD66 or MD7 actuators.

Voltage24V DC / 29V DC

Motors controlled2

Protection classIP65

Duty cycle10%

Request a quote

Technical data

Technical specifications

Input: 110V AC 60 Hz / 230V AC 50 Hz (EI transformer), 100 – 240V AC, 50/60 Hz (SMPS)
Output voltage: 24V DC (EI transformer), 29V DC (SMPS)
Rated output current: 3 A (per channel)
Max. number of actuators: 2 channels
Max. number of hand controls: 1 channel
Duty cycle: 10%, max. 2 min. continuous operation / 20 min.
IP protection class: IP65
Overcurrent protection
Emergency lowering on power failure; actuator retraction with 9V battery (not included)
Protection class against electric shock: Class II
Color: Light gray RAL 7035
Power cable length: 3,000 mm
CE Marking: EN IEC 60601-1, EN IEC 60601-1-2
Options
C Clip: To fix CB2P onto MD60, MD66 or MD7 actuator
